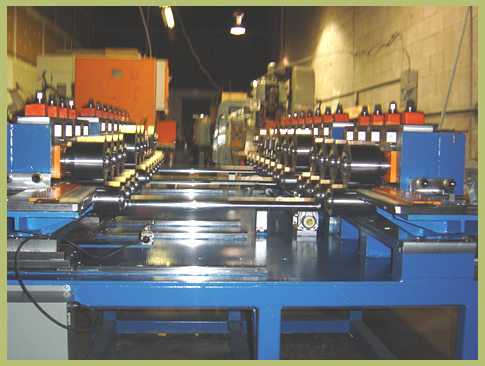

RF-JJ-048 Automatic
Purlin Roll Forming Machine |
|
| Characteristic |
- This roll forming machine can rollform
metal roofing sheet. After roll formed by this roll
forming machine, the surface will be very smooth
and beautiful without any scratch on surface.
- Rollforming process: uncoiler, rollforming, cut
to length.
- Fully Automatic Control System with PLC.
- Easy operation: Key in the length and quantity
on the control panel.
- One year warranty.
- we also can do a custom roll forming machine, i.e.
We can design the machine according to your specification
and profile drawing.
- One roll forming machine only can produce one profile.
The following profile drawing are some examples for
your reference.
|
| Composition of machine line |
- Hydraulic single head uncoiler
- Roll forming main machine
- Hydraulic cutting system with automatic Cut-To-Length
- Control panel with fully automatic control system
with PLC
|
| Specification |
| SHEET THICKNESS |
0.3 ~ 0.8 mm |
| FORMING SPEED |
20 ~ 24 m / per minute |
| ROLLER SHAFT DIAS |
φ75 mm |
| ROLLER STATIONS |
15 ~ 25 |
| MOTOR OUTPUT |
10 ~ 20 HP |
| LENGTH x WIDTH |
L 8 ~ 10 M W 1.4 ~ 1.8 M |
| SINGLE HEAD UNCOILER |
5 ~ 8 Ton |
|
| |
|
